Description

Trident Sit-down electric tricycle for ultimate comfort and stability, safety and support

Ideal for people with neuromuscular disorders, such as cerebral palsy or muscular dystrophy, or with restricted movement, e.g. associated with spasticity, paraplegia, or dysmelia. Suited to riders with one-sided weakness from a range of conditions including limb deficiencies, Parkinson's, Stroke or CP.

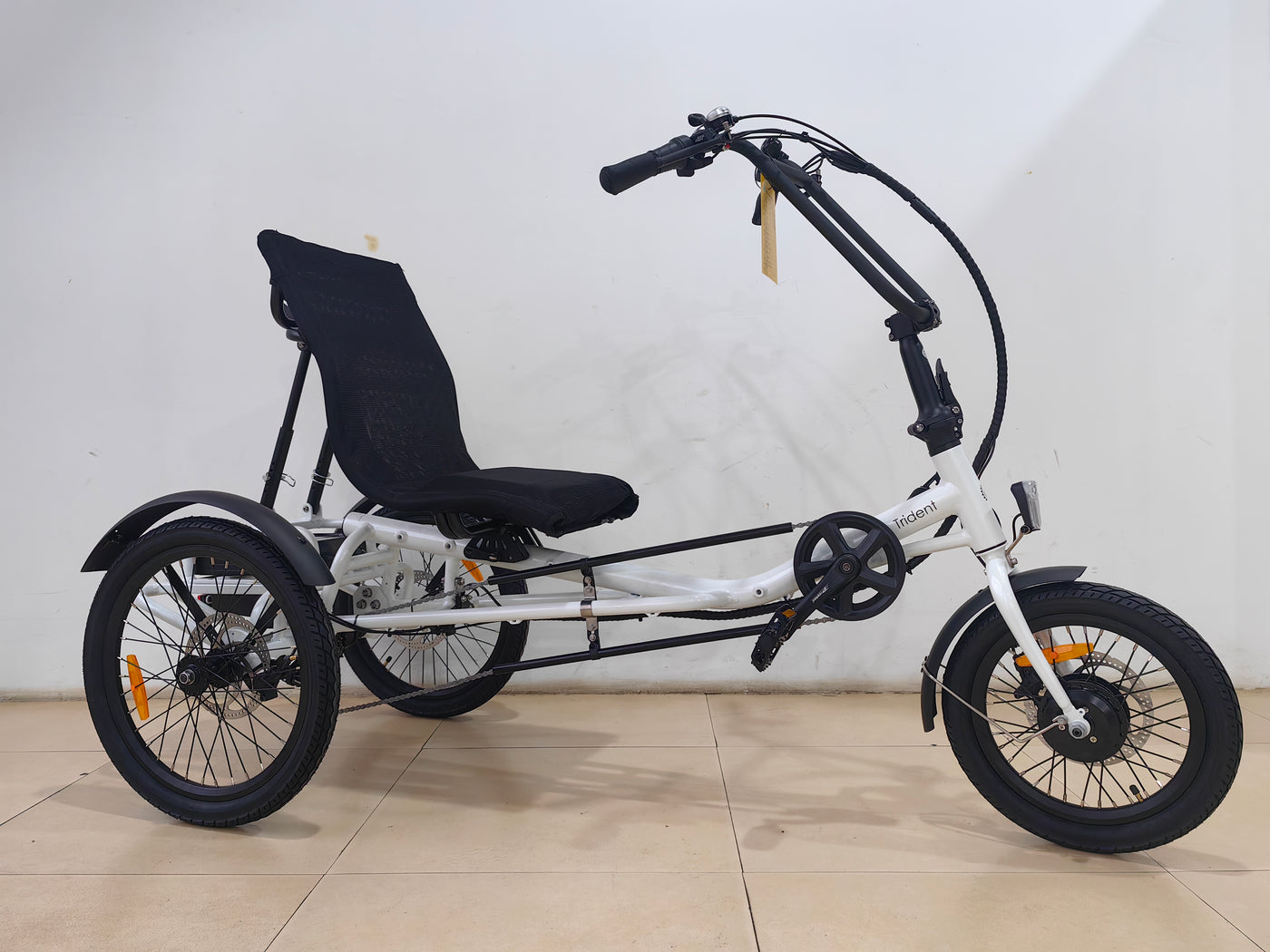

TRIDENT “sit-down” semi-recumbent electric tricycle

Our best-selling model is a sit-down trike offering safety, comfort, stability, support and a whole lot of style!

Safety

• Responsive braking using hydraulic disc brakes
• Easier transfers due to the height of the full seat height and design
• Slightly prone pedalling action and range of motor options to suit the individual
• Easy transfers onto full seat and fixed backrest form

Stability

• Rear differential
• Lower centre of gravity so handles changes in camber with ease
• Easier to control compared to an upright tricycle
• Less weight on handlebars to make steering feel lighter and more responsive
• Easy to get on and off

Support and Comfort

• Supportive seating design for bottom and back support with position adjustments and able to be modified with 4-point harness or waist strap
• Available with standard 2.125" tyres for a compact solution
• Motor can be front hub-drive cadence (PAS) for v2 special pricing.
• Broad flat pedal as standard. Range of pedal options to assist with foot placement and retention while riding (extra costs apply)

The benefits of this model means that the Trident is our most popular option for all ages and all abilities and we work with you to determine which configuration best suits your needs.

Available in gloss orange or white.

Available in front hub-drive cadence only. Call our shop for accurate pricing.

Dimensions: 185L x 110H x 76W

Note, photos against each product may present options and accessories not included in the particular configuration. Always call to check what is included in your preferred model.

Specifications

Mechanical

Brand	Trident v2
Frame material	Aluminum approx. 1.85m long
Wheel size	16" front with 20" rear with 46cm step-over frame ht
Rim	Alloy
Tyres	16"x2.125" and 20"x2.125"
Gearing	Shimano 7-speed
Front brakes	Hydraulic disc
Rear brakes	Hydraulic disc
Parking	Park-brake
Front suspension	Rigid
Rear suspension	Rigid



Electrical

250W motor with 36V 19.2Ah battery and motor controller

Motor options:

• Standard - front hub-drive 250W motor for front-wheel drive, cadence-based

(CONTACT US ABOUT CUSTOMISATION AND MODIFICATION OPTIONS - WE CAN HELP!)

Digital display with ability to program speed levels.

Ability to restrict speed and fit remote-control activation (on/off) (extra cost).

Fully assembled and tested prior to supply.

Weights

Weight including battery	36kg
Weight excluding battery	33kg
Shipping weight	40kg
Maximum load	120kg (ask us if heavier)

Accessories

On bike accessories included:

• Bell

• Comfortable mesh seat

Packaged accessories included:

• 2A Charger


Linked options/accessories that you may like to consider:

Note photos and videos may include additional adaptations that are extra cost. Base unit is flat pedals, standard 140mm cranks, no basket or supports.

• TYRES
• Front hub only available with 2.125" tyres

• ASSISTANCE -
• strap pedals
• heel-cup pedals
• ratchet-strap pedals
• moon-boot pedals
• seat strap
• side steer assembly
• remote-control cut-out for attendant use
• FRONT SECTION -
• rear vision mirror(s)
• front bag
• water bottle holder
• REAR SECTION -
• rear basket
• accessory bar for single pannier bag
• Larger capacity battery, subject to availability
• additional battery
