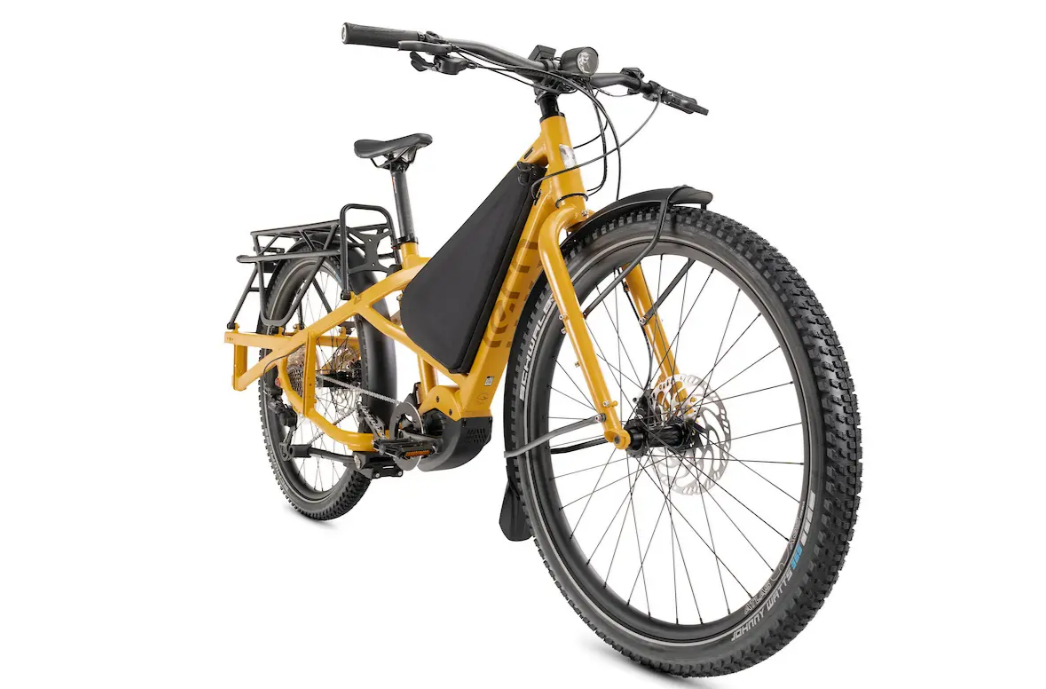

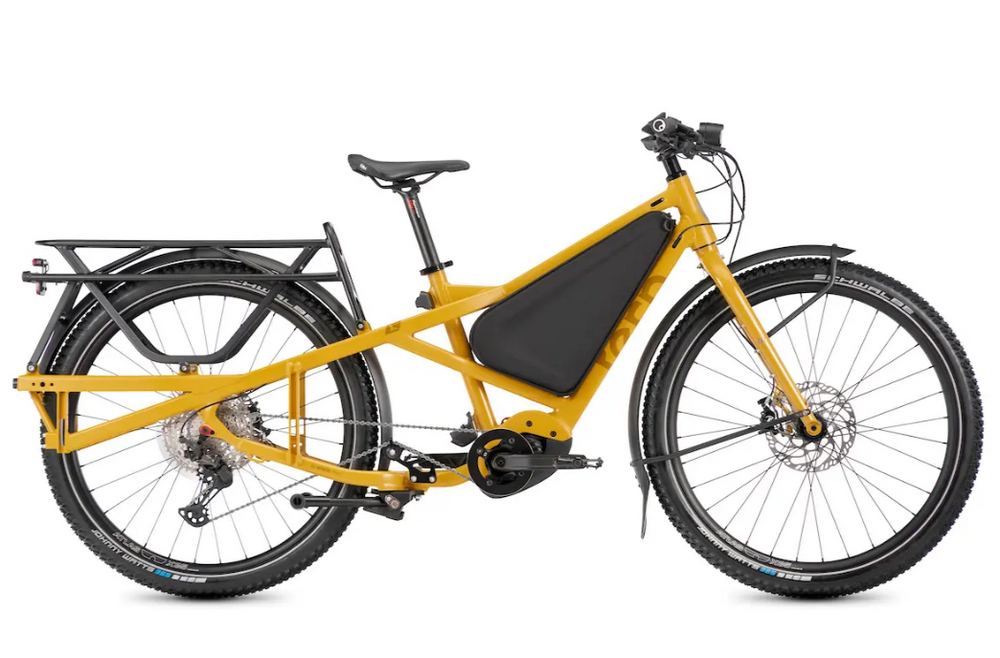

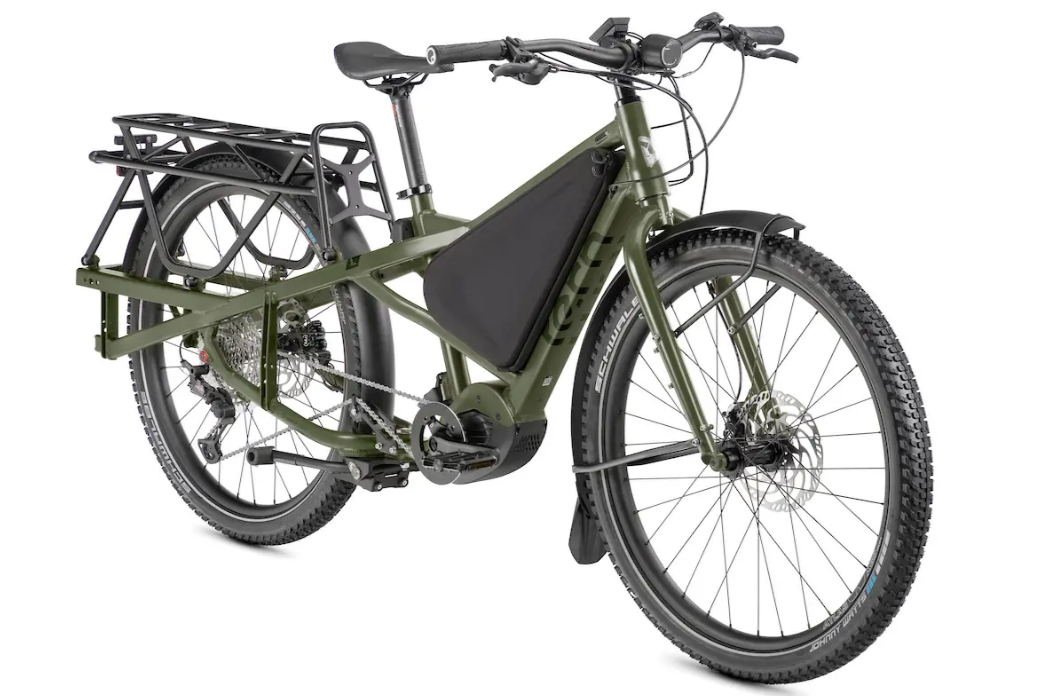

Tern Orox S12 Electric Cargo ebike Tern Orox S12 Electric Cargo ebike Tern Orox S12 Electric Cargo ebike
Tern Orox S12 Electric Cargo ebike Tern Orox S12 Electric Cargo ebike Tern Orox S12 Electric Cargo ebike

Tern Orox S12 Electric Cargo ebike

$9,495.00
Color
Satin Highland
Satin Pine

The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. This tenacious trooper packs up to two XL batteries to power you through extended off-grid explorations, and redefines what’s possible by bike with a massive Max Gross Vehicle Weight of up to 210 kg for best-in-class cargo capacity.

Travel back in time as you trace railroad remnants hidden in the woods to mining ghost towns, or journey through diverse landscapes that span from lush green valleys to the rugged pinnacles of desert badlands. With incredible range and power, Orox lets you freely go on adventures unlike any other.

Equipped with an ultra-high capacity Bosch PowerPack and dual-battery compatible for double the juice, Orox truly frees you from the iron grip of range anxiety. Ride longer and head deeper into the backcountry with immense range at your disposal. There’s no holding back now.

EN15194 compliant

Features

  • Colour options: Satin Pine, Satin Highland

NOTE: GENERAL MAINTENANCE IS ALWAYS REQUIRED FOR BIKES.

Mechanical

Brand Tern
Frame material 6061 aluminium
Wheel size 29-inch front and rear (option for 27.5 + fat tyres)
Rim Atlas X
Tyres

Schwalbe Johnny Watts 29x2.6

Gearing Shimano Deore 1 x 12-speed hub
Front brakes Magura MT5 eSTOP 4-piston hydraulic disc
Rear brakes Magura MT5 eSTOP 4-piston hydraulic disc



Electrical

Motor

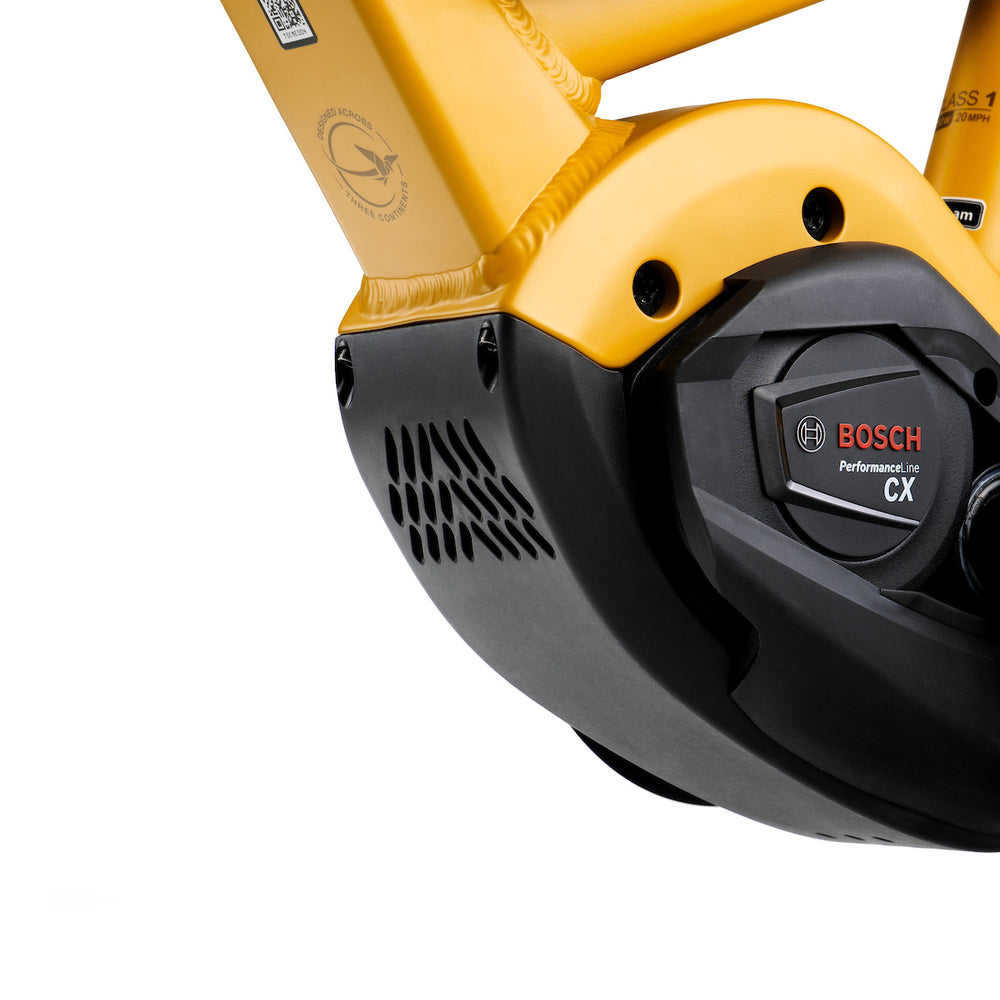

Bosch Smart System Performance CX Motor with up to 85Nm torque

Battery

Bosch 725Wh

Display Bosch Kiox 300
Mode 4 mode
Charge time 4-5 hours
Avg distance  84-146km  (dependent on load & battery configuration)



Weights

Weight including battery
Maximum load

210kg gross vehicle weight (180kg off road)

130kg rider weight

On bike accessories included

  • Integrated lights (Ignis 700 lumen front, LED w brake sensor rear)
  • Custom bash guard
  • Paint protection film (self healing)
  • Heavy-duty rear rack (100kg capacity)
  • Brass Bell
  • Optional extras at additional charge
    • Dual battery setup
    • Tern Cargo Hold panniers
    • 27.5" Rim to suit 4" tyres

Packaged accessories included

  • Charger
  • User manual
